National Luna Split Charger Kit

£ 250.02 inc. VAT

5 in stock


National Luna Split Charger Kit

We are the sole UK importers of National Luna products

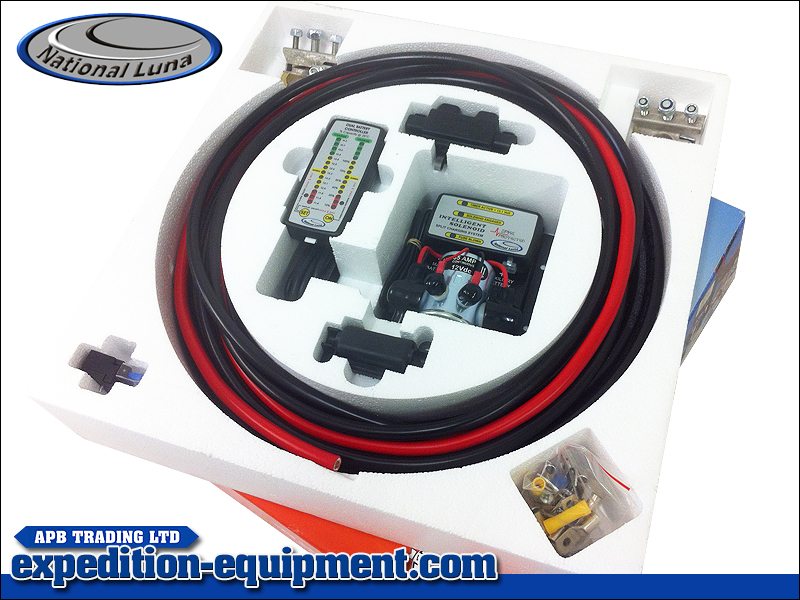

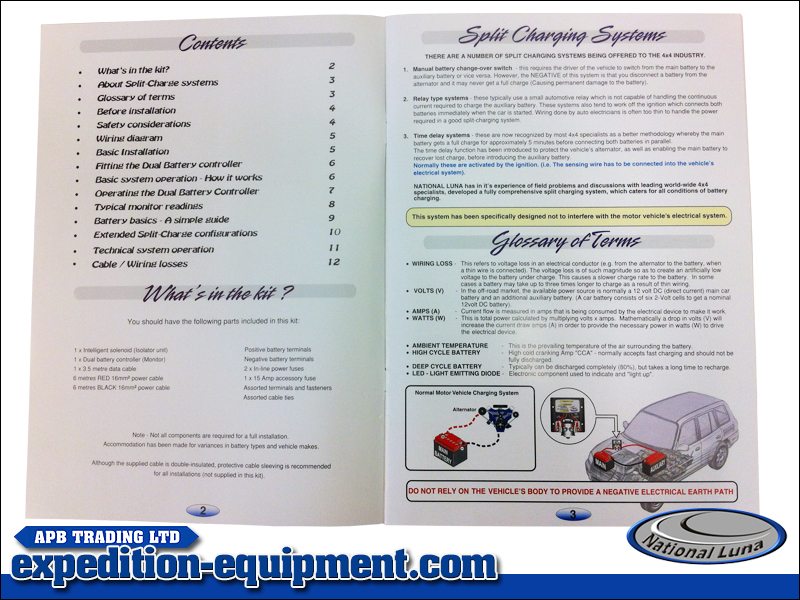

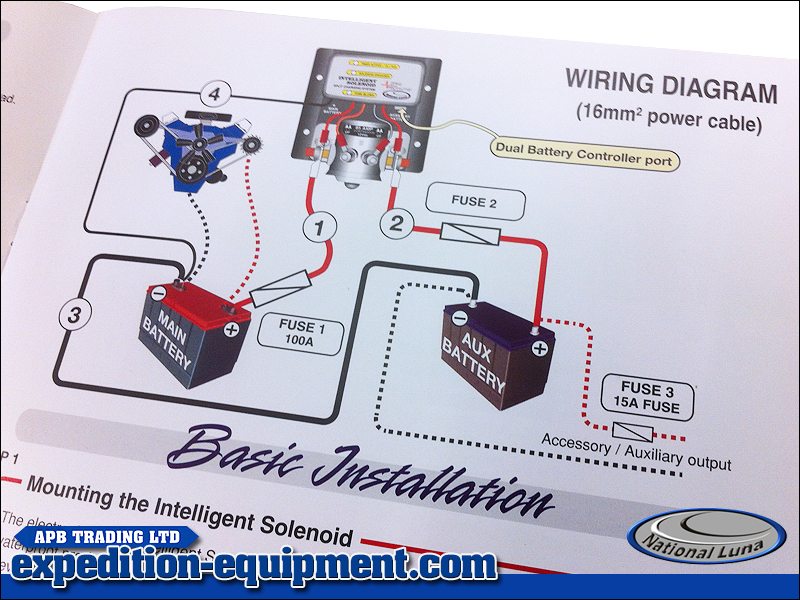

The National Luna Split Charger Kit contains all that is required to fit a Split Charging System and comes complete with wiring diagrams, installation guide and full set of instructions.

Old National Luna Model Number: S355

New National Luna Stock Code: BSP-20201

SPECIFICATIONS – Intelligent Soleniod:lligenolenoid Specifications – Intelligent Solenoid

  • Physical size – 128mm (L) x 113mm (W) x 70mm (H)
  • Weight – 4.2 kgs typical
  • Power supply  – 8Vdc – 15Vdc (display range: 11.4V – 14.2V)
  • Switched current – 85 amp (continuous), 400 amp (peak)
  • Power consumption – 40mA ave (standby), 780mA max (solenoid engaged)

SPECIFICATIONS – Dual Controller:

  • Physical size – 107mm (L) x 48mm (W) x 20mm (H)
  • Weight – 60 g
  • Power supply  – 8Vdc – 15Vdc (display range: 11.4V – 14.2V)
  • Low-voltage warning – DC voltage below 11.4V
  • Over-charge warning  – DC voltage above 14.65V
  • Cable – 3.5 metre 4-core cable
  • Power consumption – 8mA (sleep mode-option) , 35mA Average , 40mA max

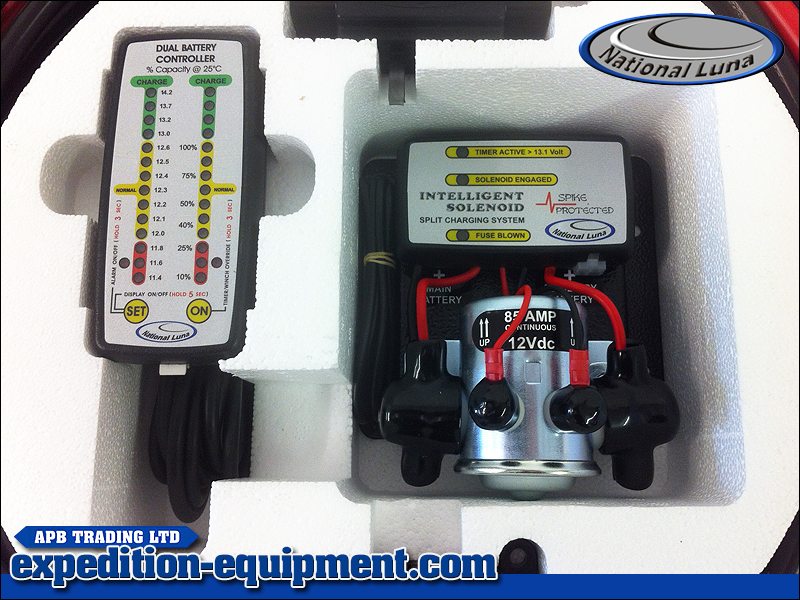

  • Dual-battery isolator (intelligent solenoid)
  • Dual battery controller (monitor)
  • Twelve metres heavy-duty cable
  • In-line power fuses
  • Accessory fuse
  • Cable lugs
  • Battery terminals
  • Screws
  • Cable ties

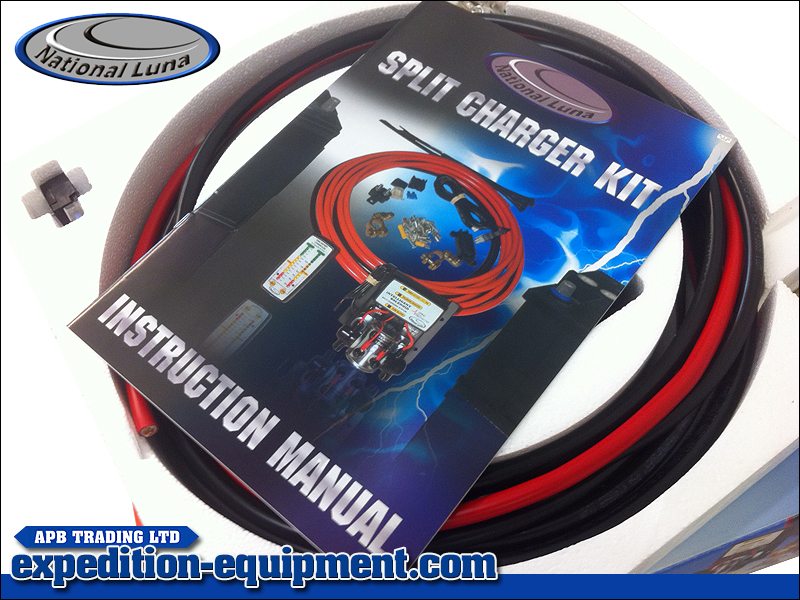

  • Instruction manual

We are able to ship outside of the UK, however, if you wish to do so please contact us directly to discuss shipping locations and costs. You can find our contact information in the ‘Find Us’ or ‘Contact Us’ links at the bottom of this page under Company Information.

Additional information

Weight 5.0 kg
Dimensions 40 × 40 × 10 cm
