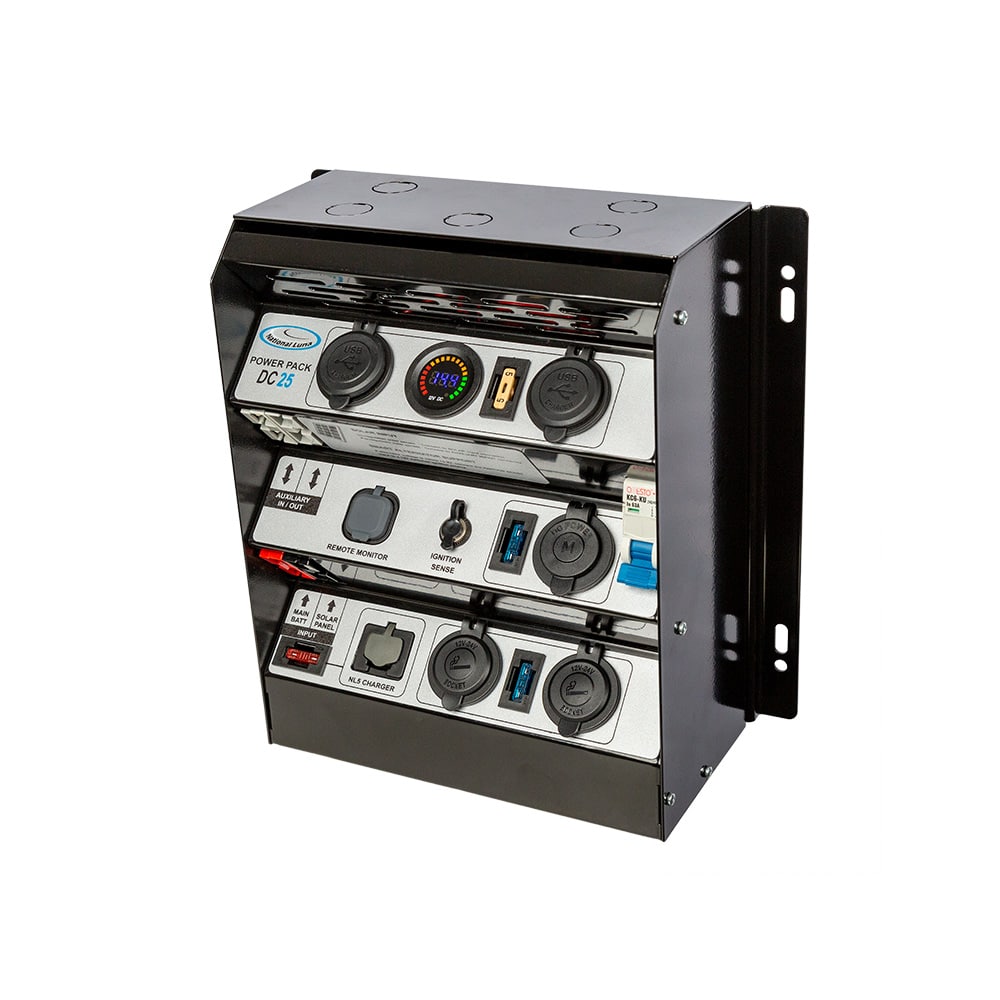

DC – 25 Power Pack Distribution Box
The National Luna DC25 Distribution Box is ideally suited to fixed installations such as trailers, caravans and campers where the auxiliary batteries are separated from the charge system.
The DC25 Distribution Box features a high-performance 25A DC-DC charge system that offers charging from the vehicle alternator as well as from Solar panels. Multiple outputs offer USB charging and fused DC sockets for connecting 12V devices.
The DC25 Distribution Box supports 12V lead-acid (wet, calcium, Gel, AGM) as well as lithium batteries.
Built-in DC-DC Charger

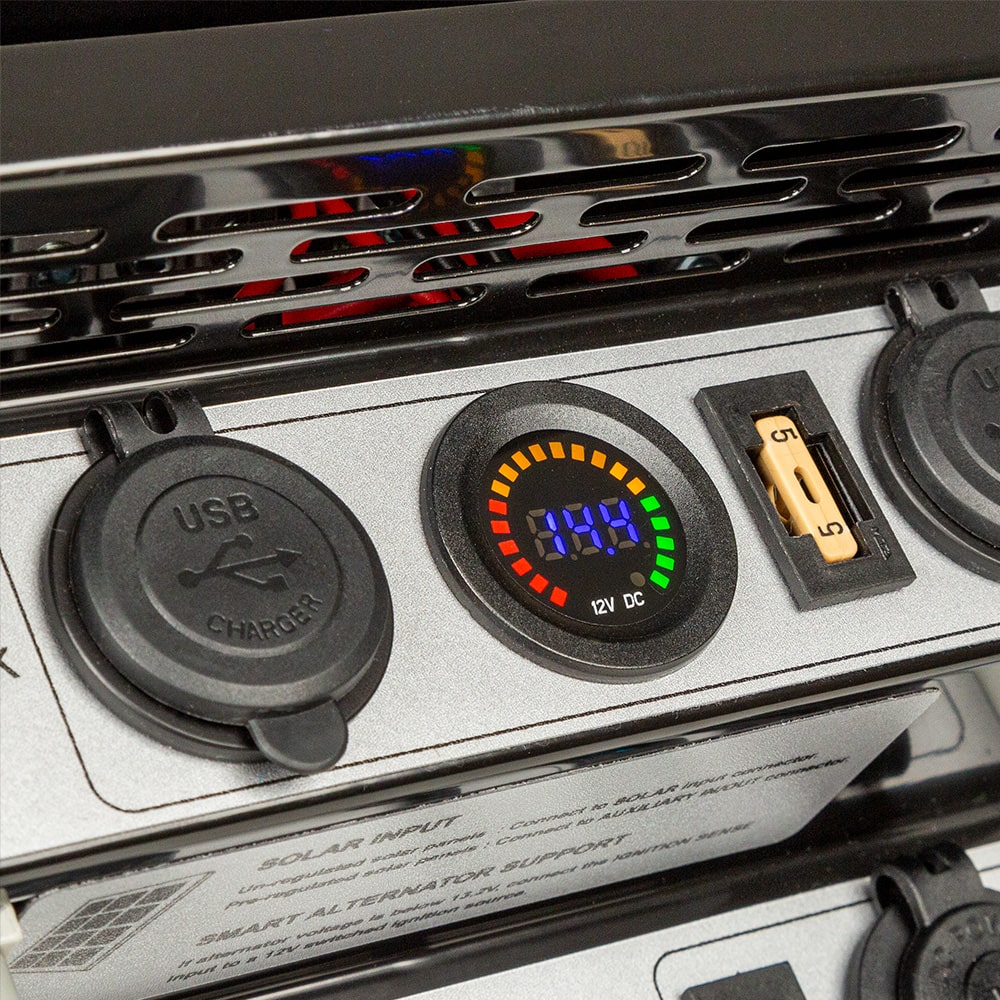

Built-in Battery Gauge
1x Solar input

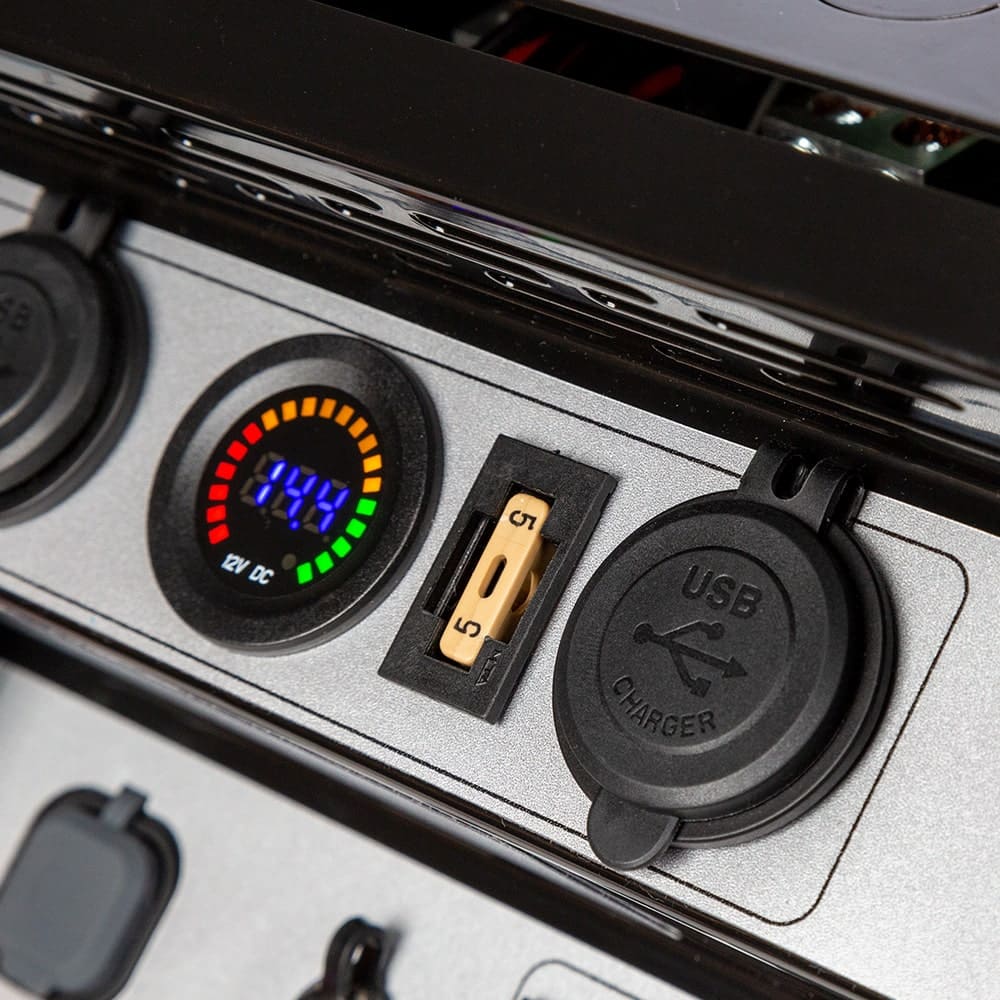

2 x Dual USB Quick Charge ports
3 x DC Sockets standard (2 x Cigar, 1 x Hella)
2 x 50A Grey coupler plugs standard
NL5 Intelligent Charger port (charger available separately)
Dimensions : 257mm x 261mm x 120mm (L x W x H)
DC-DC Features :
True 25A output current
6-stage intelligent charge algorithm
12V and 24V input
25A, 375W MPPT solar regulator
Supports solar panels up to 42V
AGM, Gel, Wet, Calcium, Lithium Ion batteries supported
Battery temperature compensation for safe charging
Optional remote monitor
Order Stock Code:
BMS-20300 No cables No remote monitor
